24V36V250W Electric DC Motor Brushes Motor for Electric Bike Conversion Kit Electric Bicycle Scooter Motor
24V36V250W Electric DC Motor Brushes Motor for Electric Bike Conversion Kit Electric Bicycle Scooter Motor - 36V 250W is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
24V36V250W Electric DC Motor Brushes Motor for Electric Bike Conver...
Highlight title
Text to highlight a key feature of your product
Description
Description
- This item is a brush motor for electric bicycle.

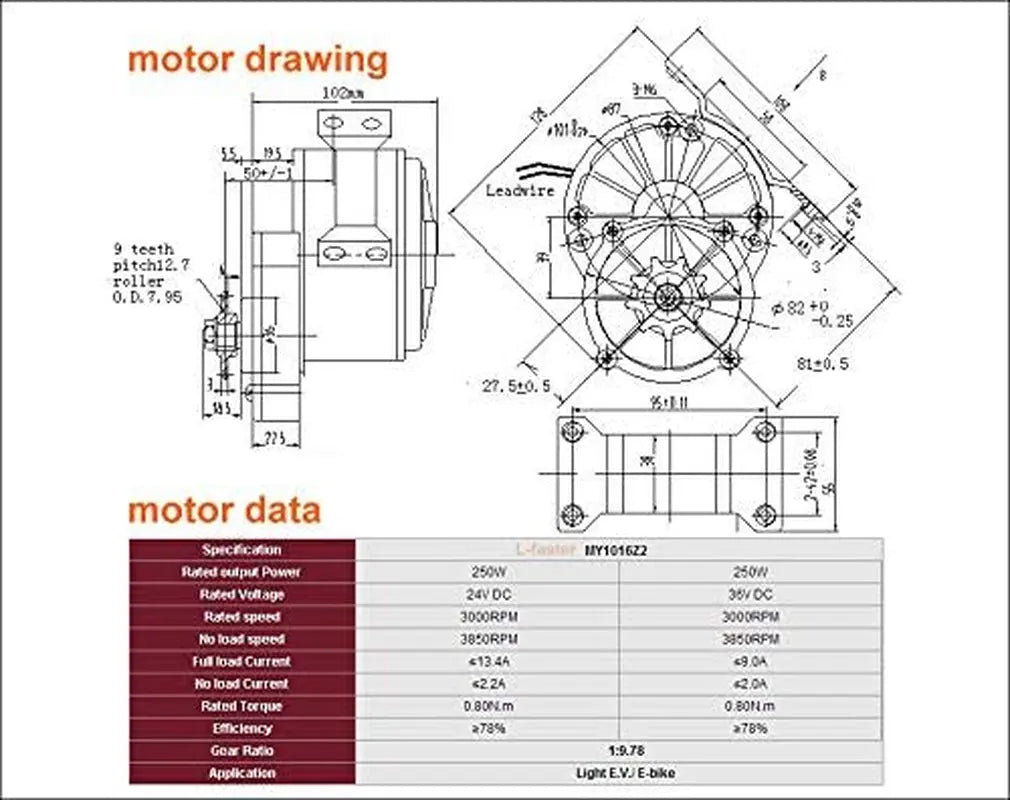

- Model: MY1016Z2
- Voltage: 24 Volt DC，36 Volt DC
- Output: 250 Watt
- Sprocket: 9Tooth only fits #410 bicycle chains
- For Chain Size: Pitch 0.5in
- Roller Diameter 0.3in
- Roller Width 0.16in
- We have both 250W and 350W for this motor. this link is for 250W, if you want 350W, please click another link.
Product Description

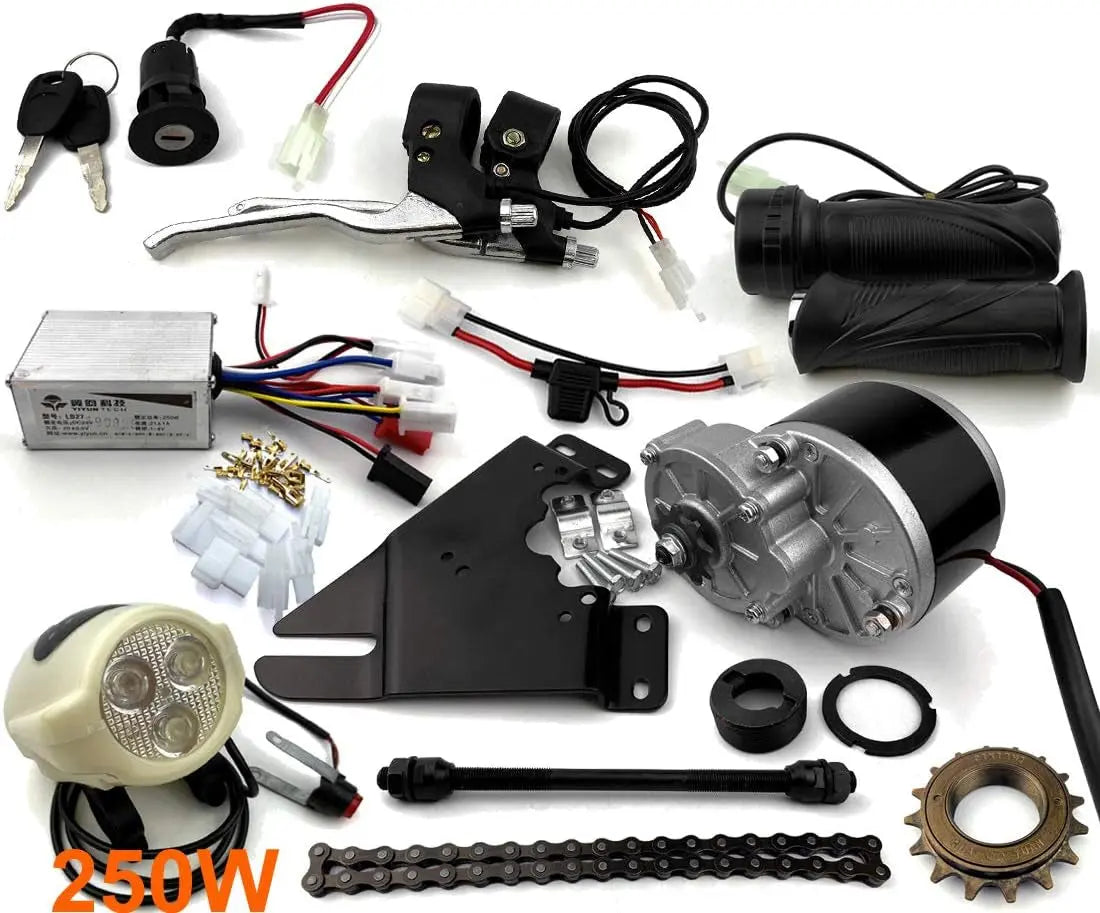

The kit includes:

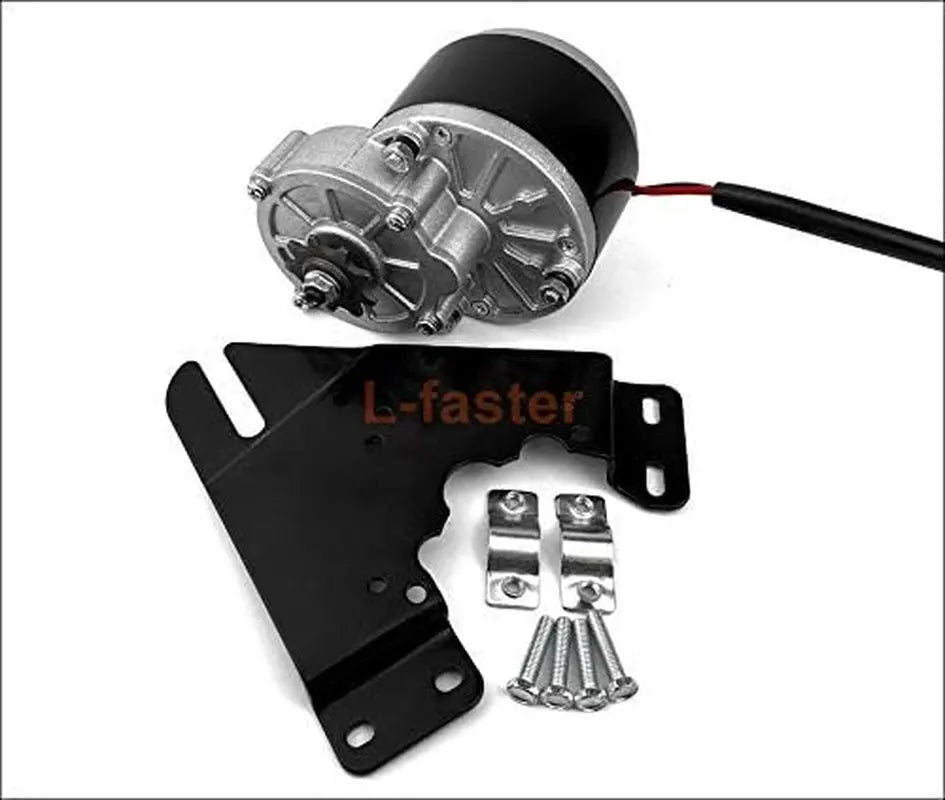

1. 1x 24V/36V 250W rare earth DC motor
2. 1x Chain
3. 1x Freewheel
4. 1x Freewheel adapter
5. 1x Motor controller
6. 1x Mounting plate + bolts

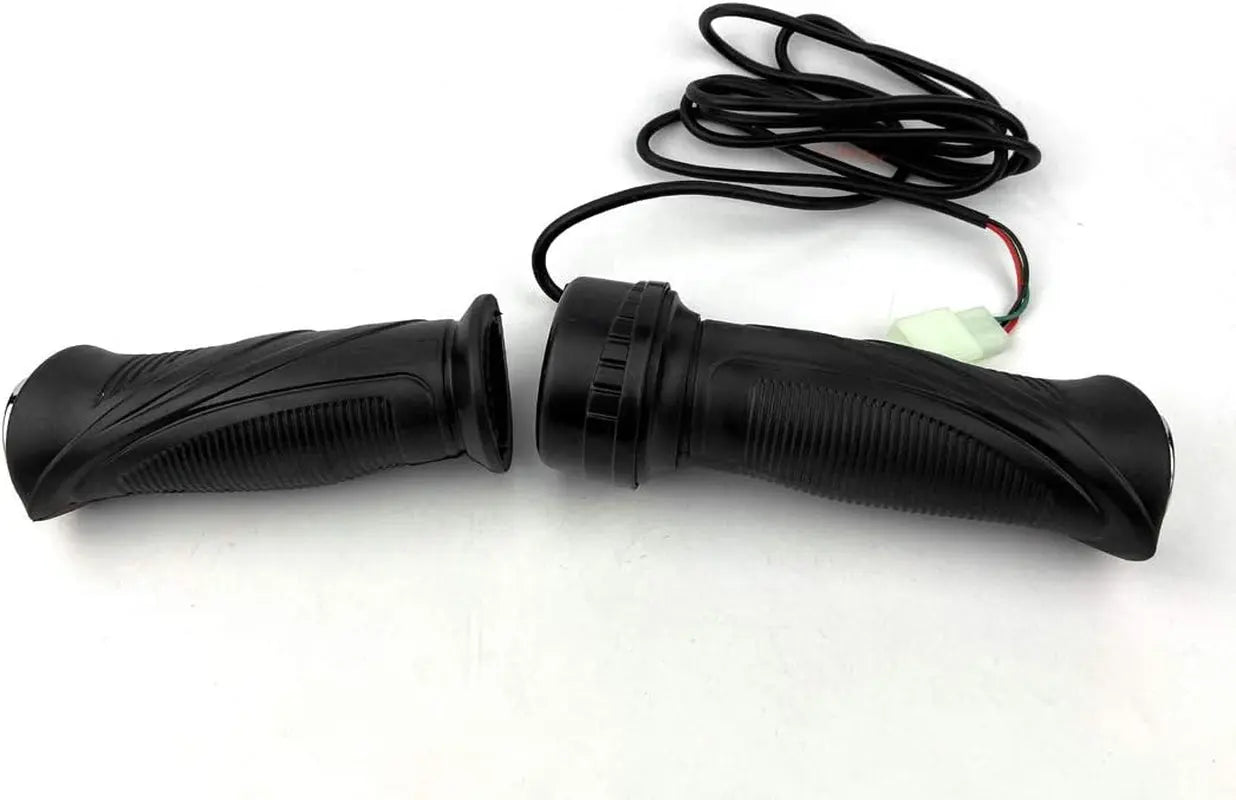

7. 1x Throttle handle & brake lever
8. 1x Switch & key
9. 1x 18cm axis
Note: this kit without battery and battery charger .
Maximum load :75kg
250W brush motor
Before order (important):
1). This kit is for the bike that using a single-speed freewheel.
If your bike has some speed gears or the gear is fixed, this kit does not compatible with that bike, please choose other kits.
2). The motor bracket maybe does not fit your bike frame, this you need to modify the bracket by yourself, please confirm this.
If you do not know how to modify, please send me your bike picture, so I can give you suggestion.
3). This kit just for people riding bike easier, it is not fast (26-inch bike can run about 20km/h), you'd better pedal with the motor power, this can ride longer, please understand.
4). The difference between 24V and 36V is the working current, if you want to ride longer, I recommend 36V kit.
5). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are all ok, and the battery capacity I recommend 24V 15Ah or 36V 12Ah.

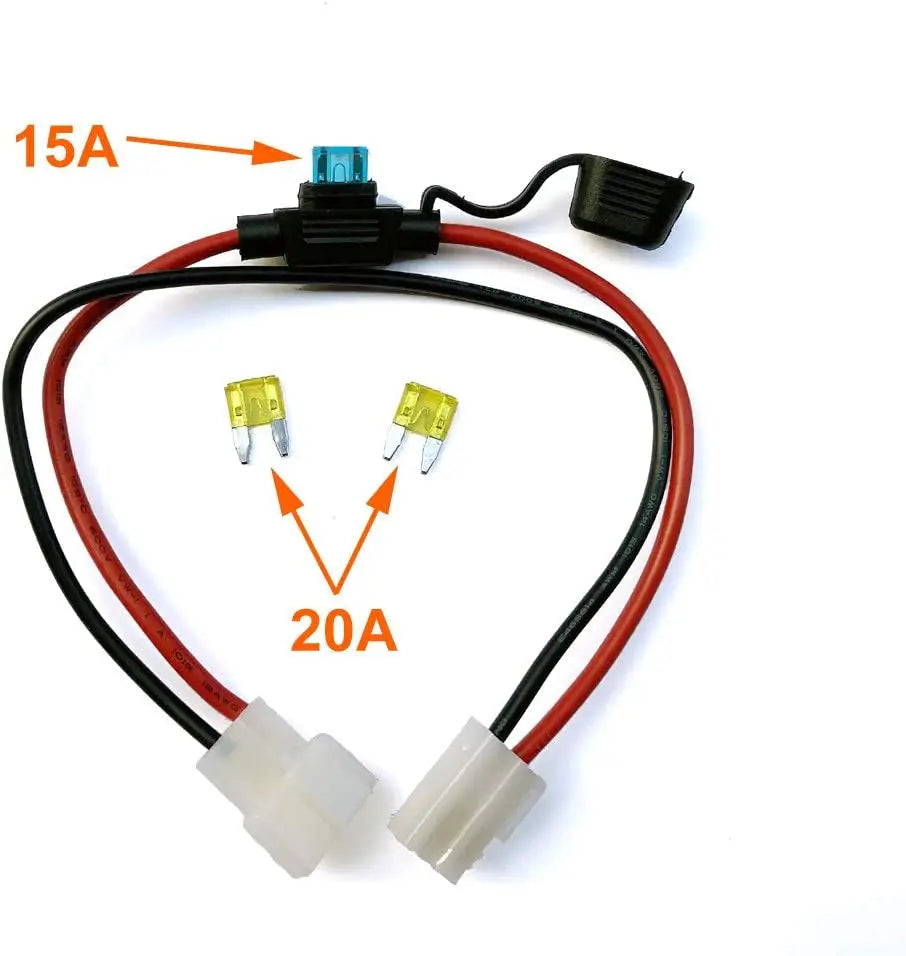

6). This controller comes with 1 fuse wire and 3 fuses, if you burn 1 fuse, you'd better note what makes it burnt and avoid this happen again, or please feel free to contact me for help.

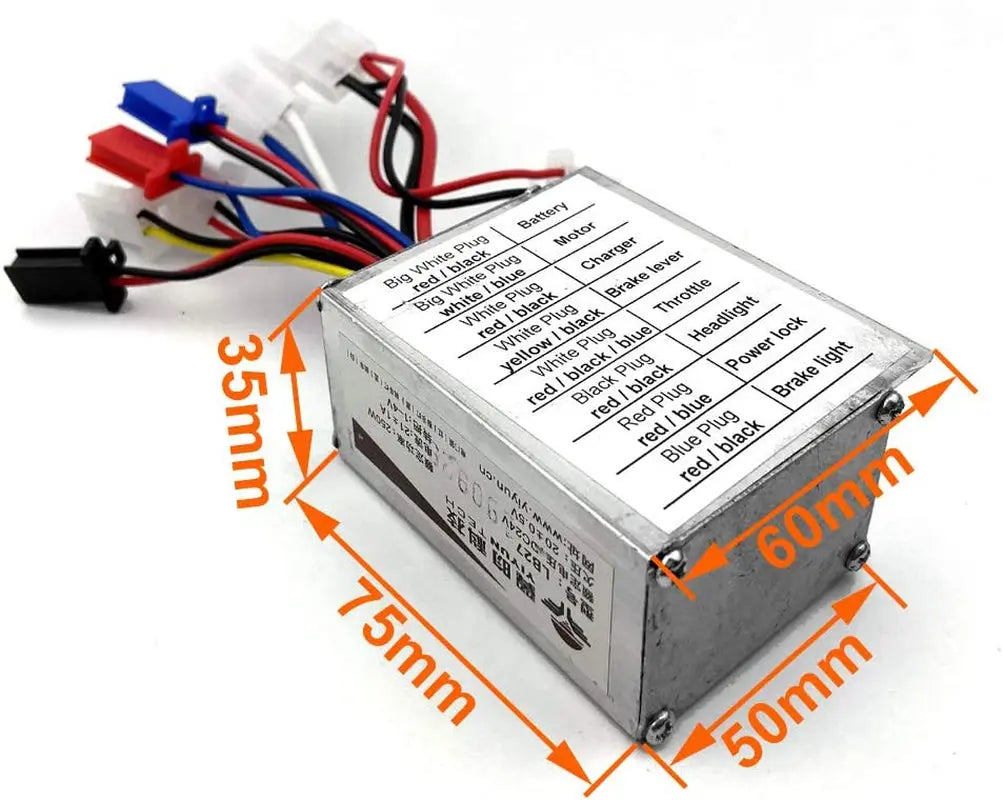

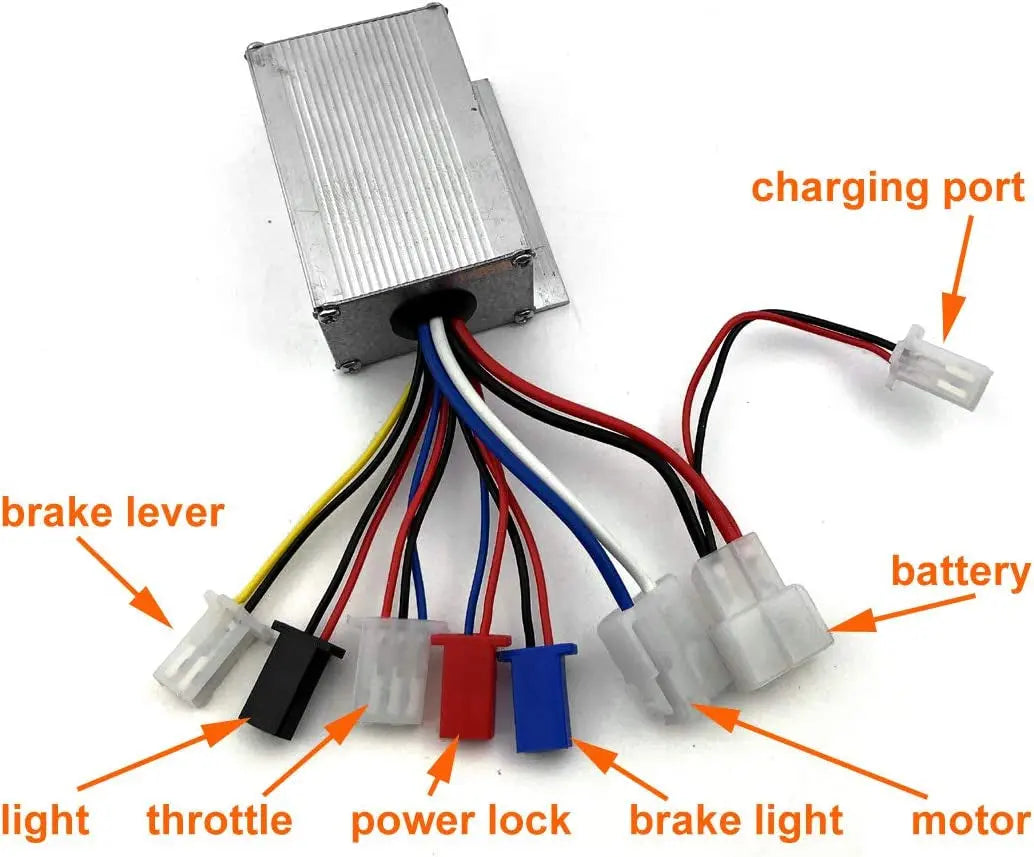

Motor controller with Throttle

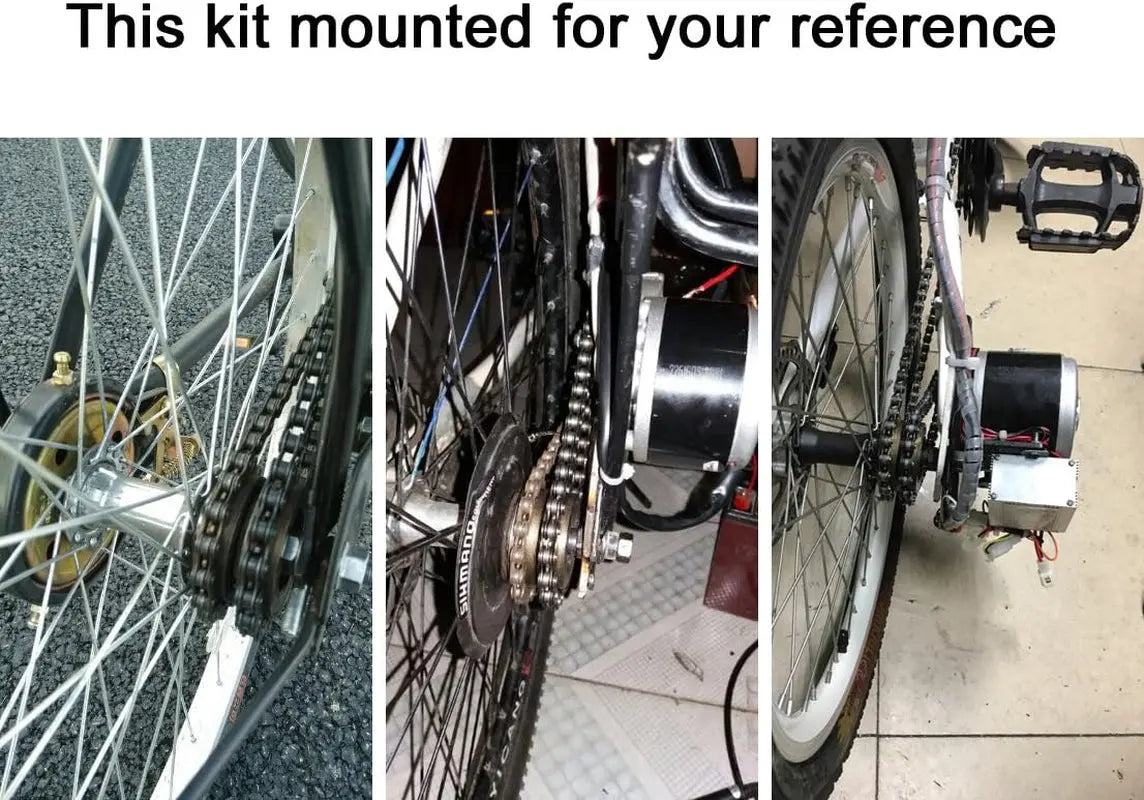

Installation process

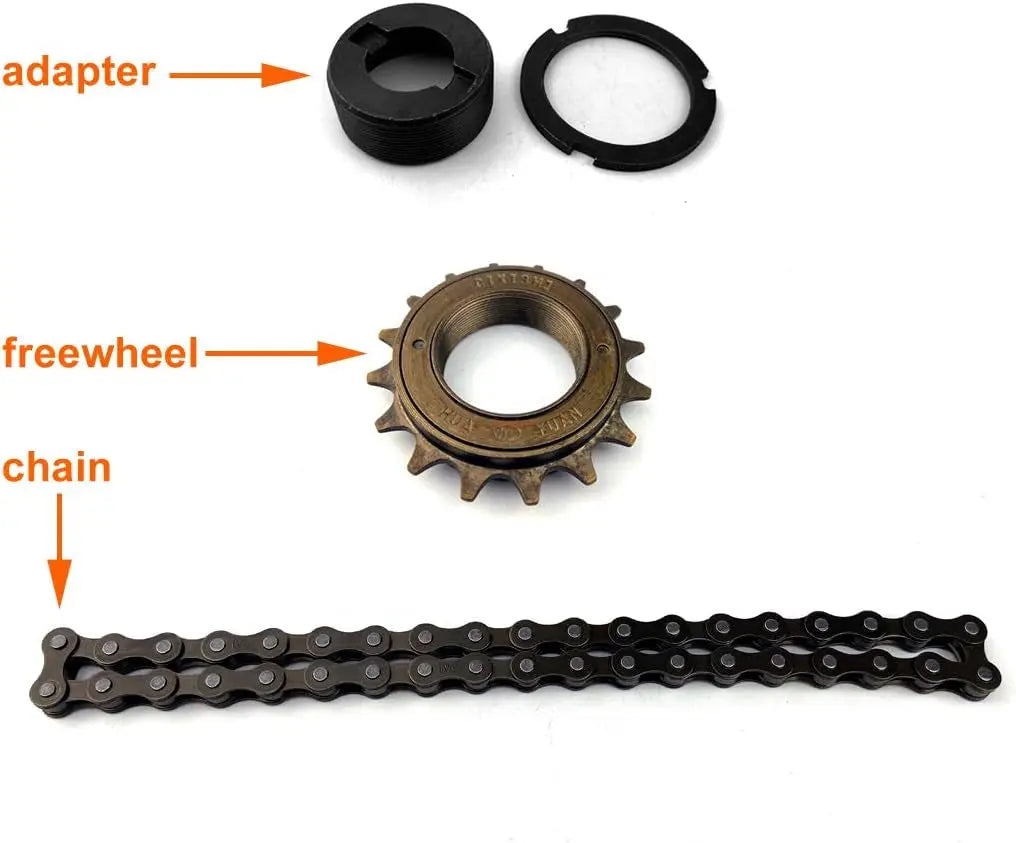

Sprocket assembly
16T flywheel | adapter | chain and axle |
