Bus Bar -3X1/4” Post, 10X#8 Screw Terminal Power Distribution Block with Ring Terminals（Single-Black）
Bus Bar -3X1/4” Post, 10X#8 Screw Terminal Power Distribution Block with Ring Terminals（Single-Black） - Black Bus Bar With Terminals is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Bus Bar -3X1/4” Post, 10X#8 Screw Terminal Power Distribution Block...
Highlight title
Text to highlight a key feature of your product
Description
Description
- PARAMETER-----10 stainless steel #8 terminal screws,3*1/4" studs.

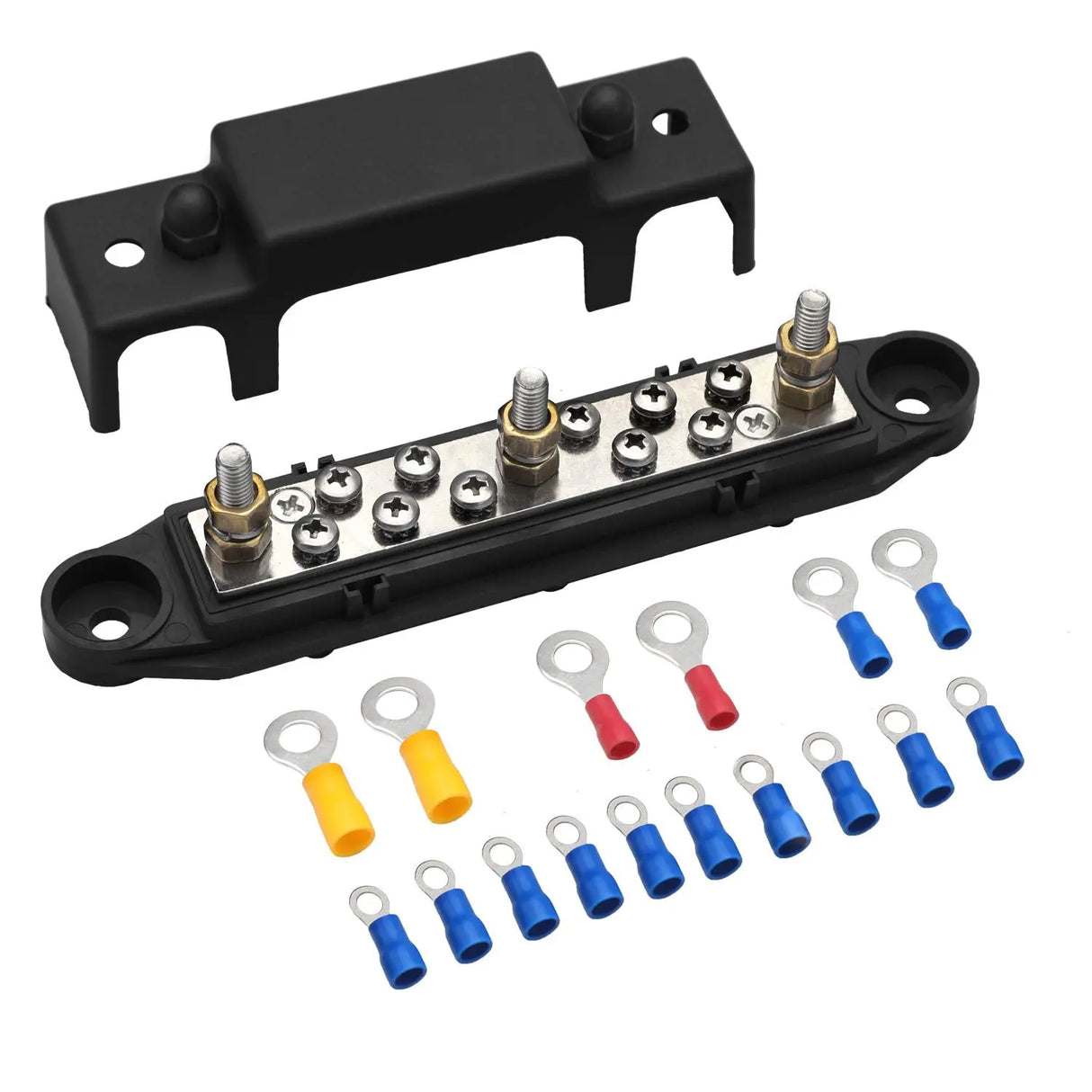

- WHAT YOU GET-----Cover attaches with nylon nuts to the two outside studs to protect against accidental short circuits. Come with 1/4” and #8 suitable insulated ring terminals.No need to find the small rings anymore.
- RANGE FOR USE---- Max voltage: 48VDC. Max continuous amperage: 150ADC. Max intermittent: 20 A per connection (less than 1 minute).
- HIGH QUALITY FOR SAFE----- Nickle plated brass contact plate for low resistance ,maximum conductivity and protect against corrosion.
- USE IN MULTIPLE OCCASIONS----- Mofeez busbar gives a neat and clean finish to any installation in your boat, car or caravan.Cover and base manufactured from robust ABS plastic for excellent strength and durability in even the harshest of environments.
Product Description
Mofeez Busbar
Max Voltage- 48vdc
Max Amperage-150 amps @12vdc - 20 amps per connection

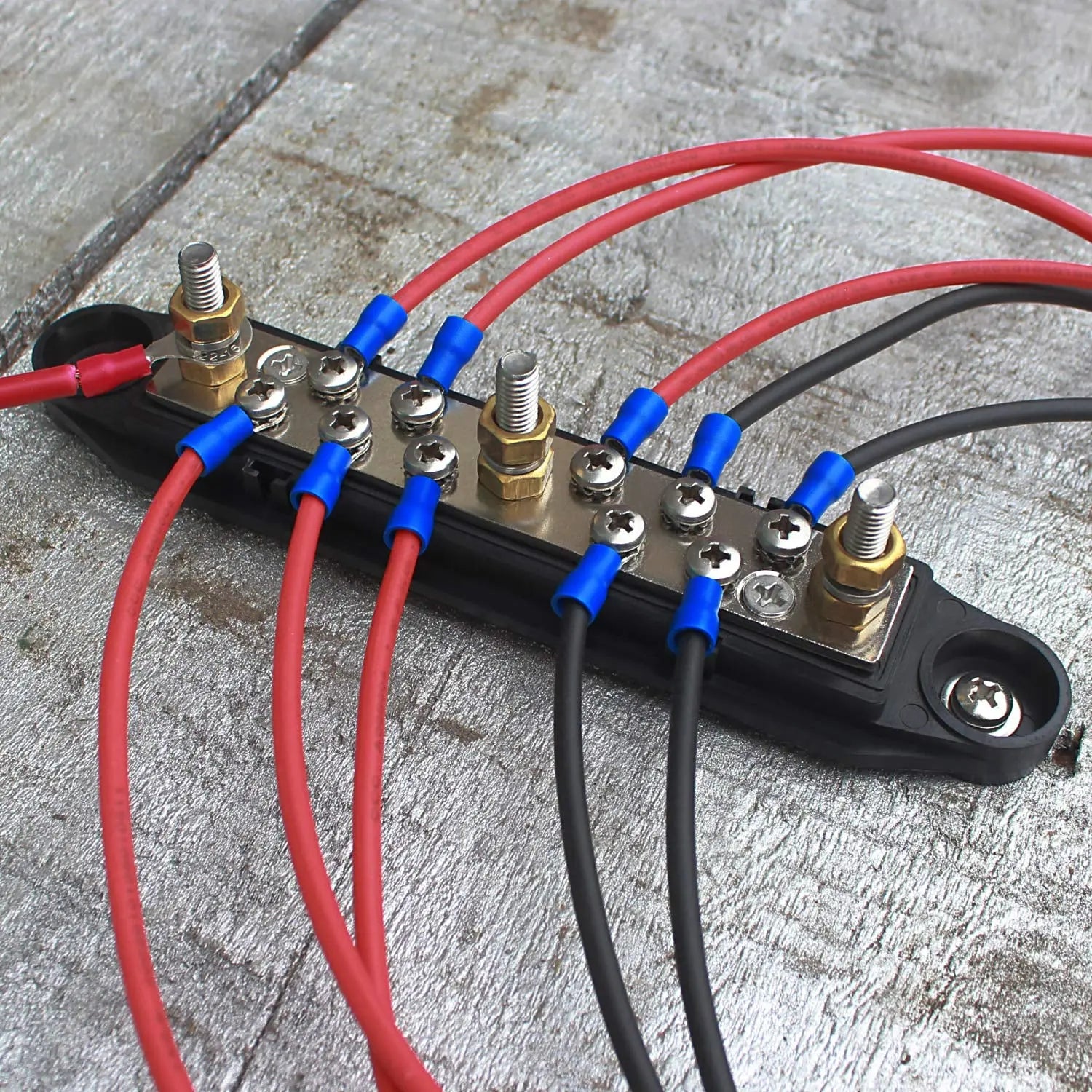

High Quality for SafeThe shell is made with flame-resistant material, safer than normal plastic. Copperplate conductor has good electrical conductivity and also nickel-plated has a better anti-oxidation performance which makes it more durable. | Mounting Screw HolesMount it anywhere you want by two screw holes at the end of the terminal. (Self-tapping screws are not included.) | Connection with EaseSimply insert the wire into the ring terminal, and then pass the screw through the terminal to fix it on the terminal block. Up to thirteen terminals can be connected to a row. | Protection CoverOur power distribution block also includes covers to protect against accidental touching of the terminal. It is safer when the terminals are protected by snap-in plastic "lids". |
| Stud Size | 4 x 3/8" | 4 x 5/16" | 3 x 1/4" | 3 x 1/4" | 3 x 1/4" |
|---|---|---|---|---|---|
| Terminals | 6 x #8 Screws | 6 x #8 Screws | 10 x #8 Screws | 10 x #8 Screws | 10 x #8 Screws |
| Nickle Plated Brass Contact Plate | ✓ | ✓ | ✓ | ✓ | ✓ |
| Color | Red & Black | Red & Black | Red & Black | Red | Black |
| Max Voltage | 48VDC | 48VDC | 48VDC | 48VDC | 48VDC |
| Max Continuous Amperage | 250AMP | 250AMP | 150ADC | 150ADC | 150ADC |
| Max Intermittent | 20 A per connection | 20 A per connection | 20 A per connection | 20 A per connection | 20 A per connection |
| Connecting Terminal Rings | 32pcs | 16pcs | 16pcs |
